Industrial Clarifier Systems for Efficient Water Treatment
Aquen designs and manufactures high-performance Industrial Clarifier Systems for effective solid-liquid separation in water and wastewater treatment plants. Our clarifiers deliver efficient sedimentation, reliable sludge removal, optimized performance, and long-term operational efficiency for industrial, commercial, and municipal applications.

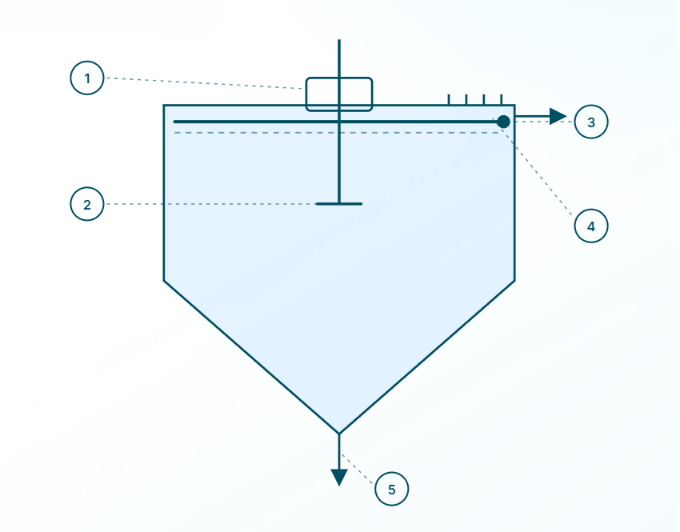

Clarifier System Schematic
Inside the Clarifier: A Cross-Section View
An engineering-style breakdown of how the clarifier moves water through the basin, from central feed to effluent outlet and sludge discharge.
01
Drive Unit & Motor
Centrally mounted gear-motor assembly powers the rotating bridge at a controlled, continuous speed.
02
Central Feed Inlet
Influent enters through a central feed well, distributing flow evenly across the basin diameter.
03
Rotating Rake Arm
The travelling bridge sweeps settled solids inward and downward toward the collection cone.
04
Effluent Outlet Weir
Clarified water rises and exits over a level, adjustable weir at the basin perimeter.
05
Sludge Discharge Cone
Settled solids collect at the hopper base and are drawn off for downstream handling.
Section View · Not to scale
99.2%Solids Removal Efficiency
1,200 m³/dayTreatment Capacity
24/7Continuous Operation
High-Performance SettlingEngineered for your flow, solids load & footprint
Overview
What Is a Clarifier System in Water & Wastewater Treatment?
A clarifier system is a critical settling unit used to remove suspended solids, separate sludge from liquid, and improve clarified water quality in industrial and municipal treatment processes. It supports reliable downstream filtration, reuse, discharge compliance, and smoother plant operation.
For complete treatment integration, this system can be combined with our Effluent Treatment Plant, Sewage Treatment Plant, and Water Treatment Plant solutions.
Solid-Liquid SeparationContinuous OperationCompact FootprintLow Maintenance
System Highlights
Designed for high-performance settling, sludge collection, and clarified water recovery
Our clarifier systems are suitable for industrial wastewater treatment, process water recovery, raw water clarification, and municipal installations where reliable sedimentation, low carryover, and efficient operation are critical. Each system is configured to match flow rate, solids loading, retention requirements, and available installation space.
24/7Continuous Operation
HighSettling Efficiency
LowOperator Effort
CustomPlant Sizing
Systems We Offer
Clarifier Technologies for Industrial Water Treatment
Different clarifier configurations designed for varying flow capacities, suspended solids characteristics, sludge settling behavior, and plant treatment requirements.

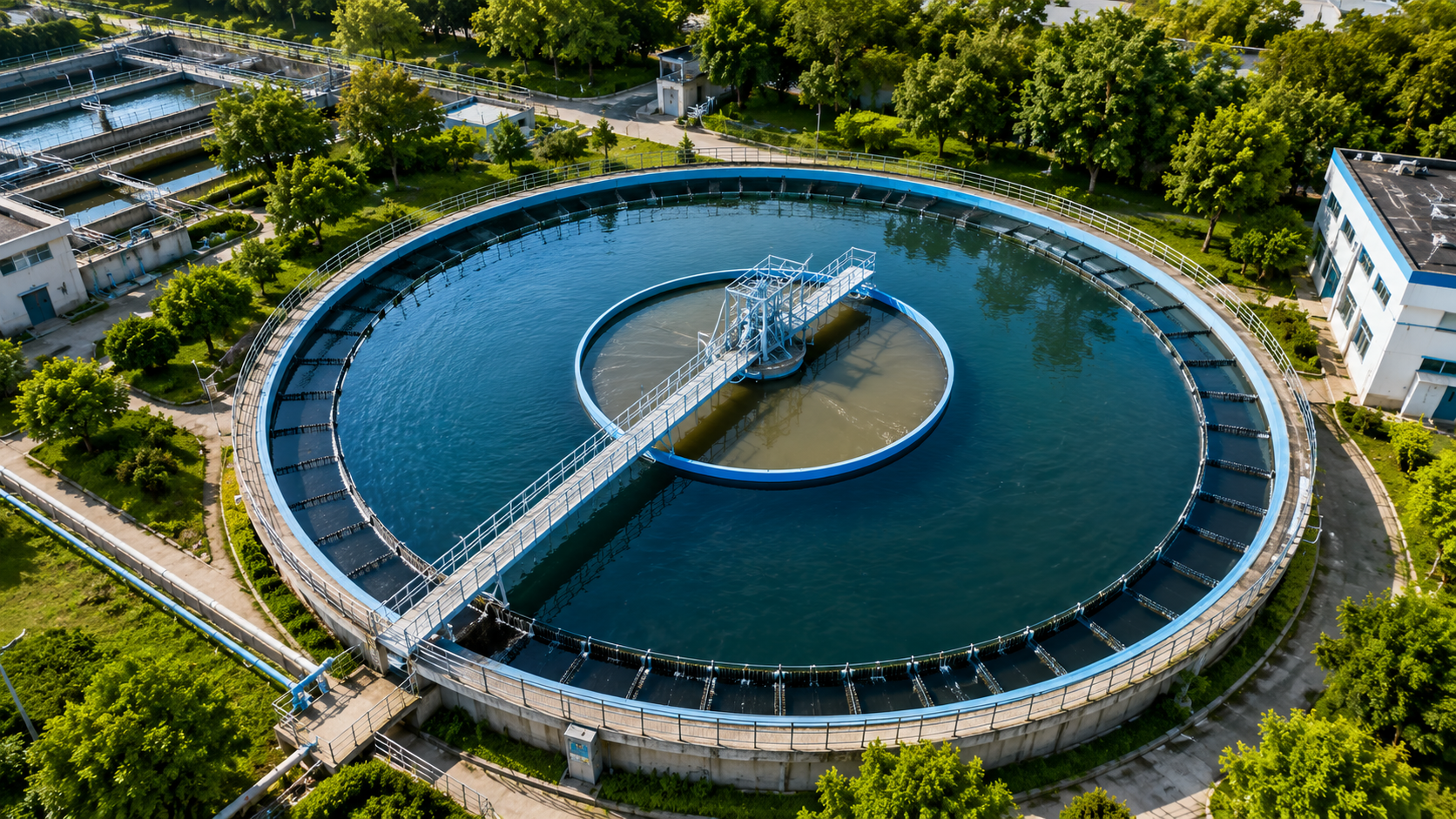

01 / 04Clariflocculator / Clarisettler
Combines flocculation and clarification in one system for controlled particle agglomeration, stable clarification, and smooth treatment flow.
- Integrated flocculation + settling
- Stable, consistent output
- Suited to variable influent loads
Key Benefits
Clarifier System Benefits for Daily Plant Performance
Our clarifier systems are designed for smooth sludge collection, stable clarification, reduced operator intervention, and easy integration into industrial and municipal treatment plants.
In-house Design
Engineered and configured to match hydraulic load, solids profile, and project requirements.
Easy Operation
Simple process flow and accessible controls for straightforward daily operation.
Compact Design
Efficient layout for better use of plant space without compromising settling performance.
Low Maintenance
Robust build, durable components, and simplified servicing for long operational life.
Optimized Dosing
Supports effective clarification with optimized coagulant and flocculant dosing.
Custom Capacity
Adaptable to different flow rates, influent quality, and water characteristics.
Working Process
How a Sewage Treatment Plant Works
Four stages, start to finish — from raw influent to water clean enough to reuse or discharge.
01
Screening & Collection
Raw sewage passes through bar screening to remove rags, plastics, floating matter, and coarse solids before collection and equalization.
0% removed02
Equalization & Aeration
Equalization balances flow and organic load, while aeration supplies oxygen for microbial degradation of BOD and COD.
45% removed03
Clarification / Membrane Separation
Biological solids are separated through clarification, tube settling, or membrane filtration while return sludge maintains stable biomass.
88% removed04
Tertiary Treatment & Disinfection
Tertiary filtration and disinfection polish treated water for flushing, gardening, cooling tower make-up, washing, or compliant discharge.
98% removedApplications
Clarifier System Applications by Industry
Suitable for water treatment and wastewater clarification across industrial and municipal sectors.
Water Treatment Plants
Wastewater Treatment Plants
Textile Industry
Chemical Industry
Food & Beverage
Pharmaceutical Units
Municipal Utilities
Process Water Recovery
Project Gallery

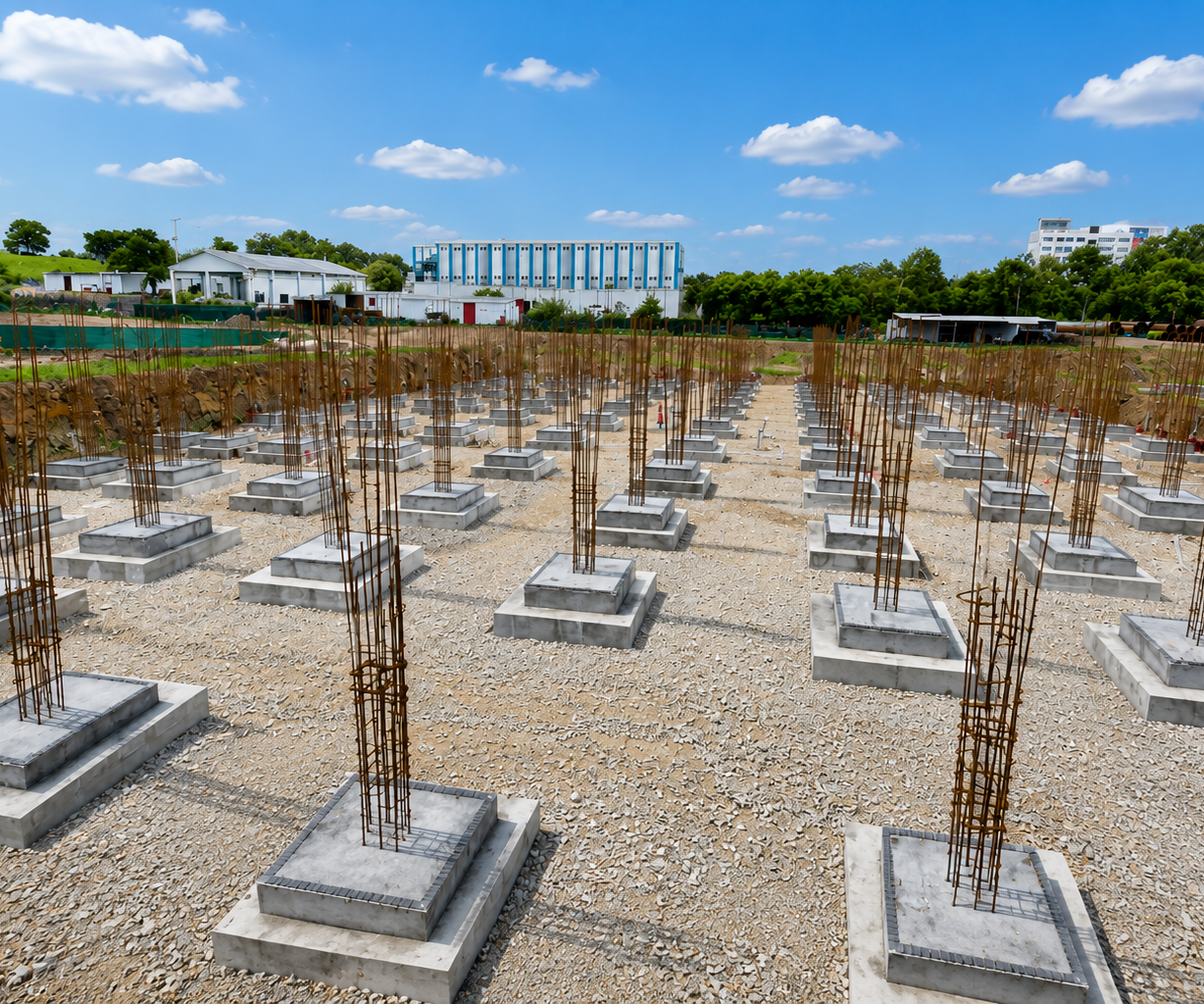

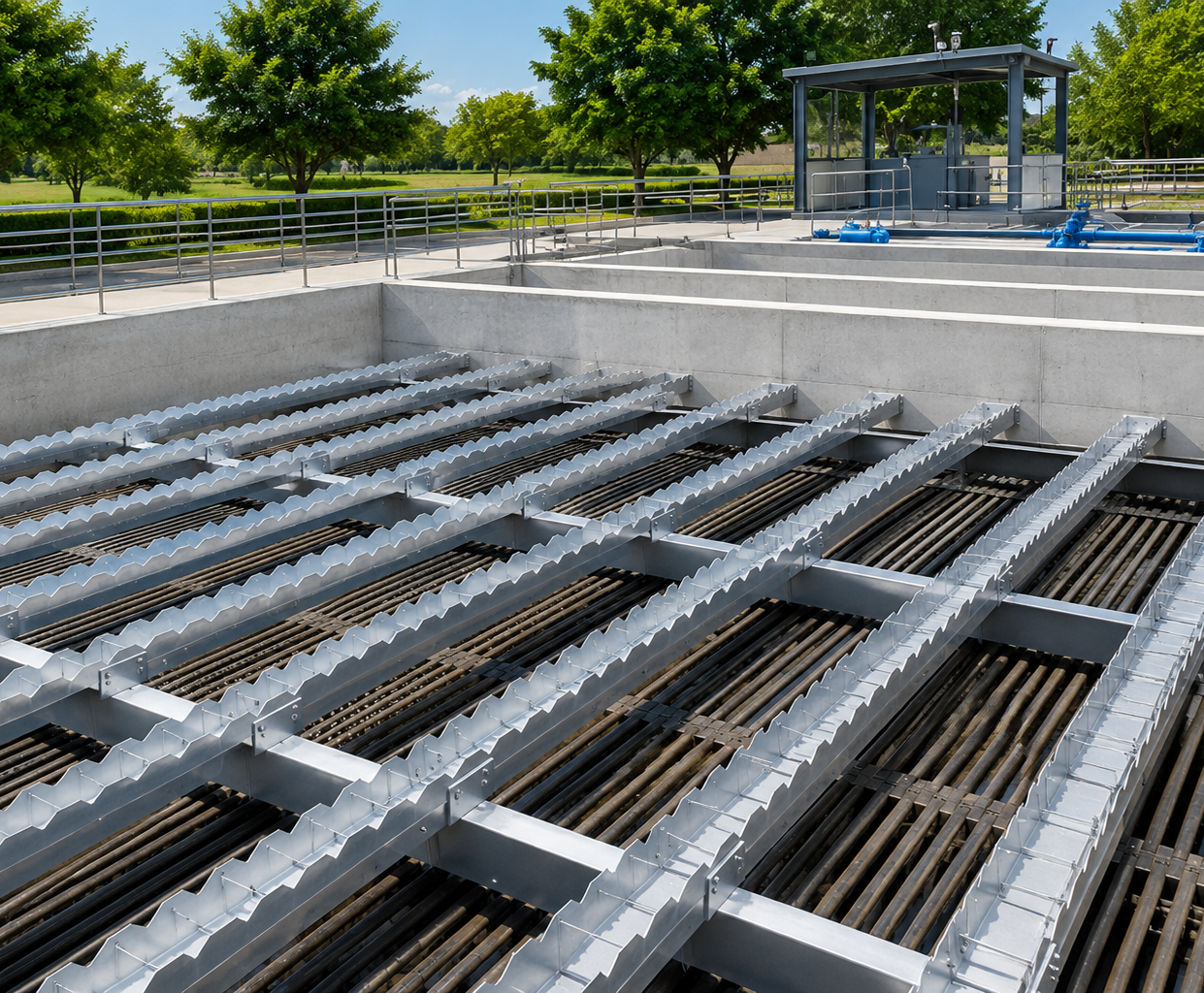

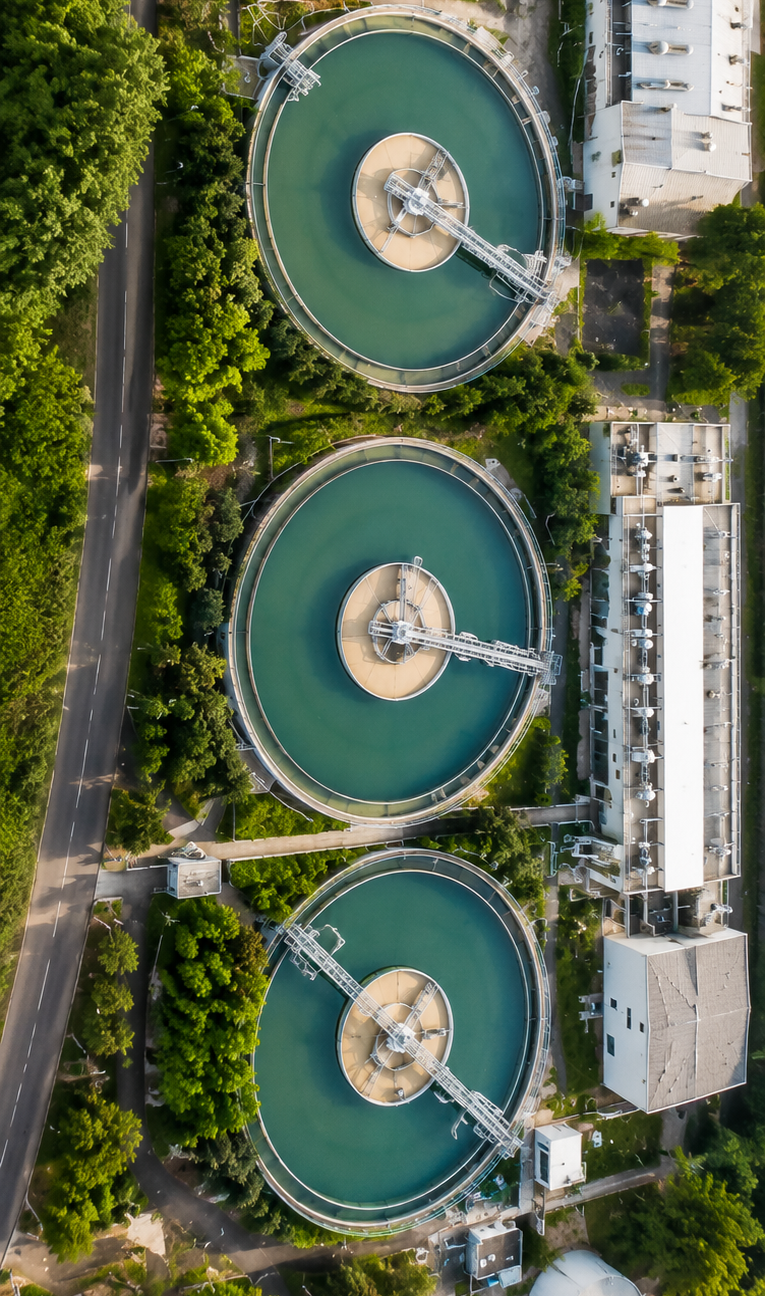

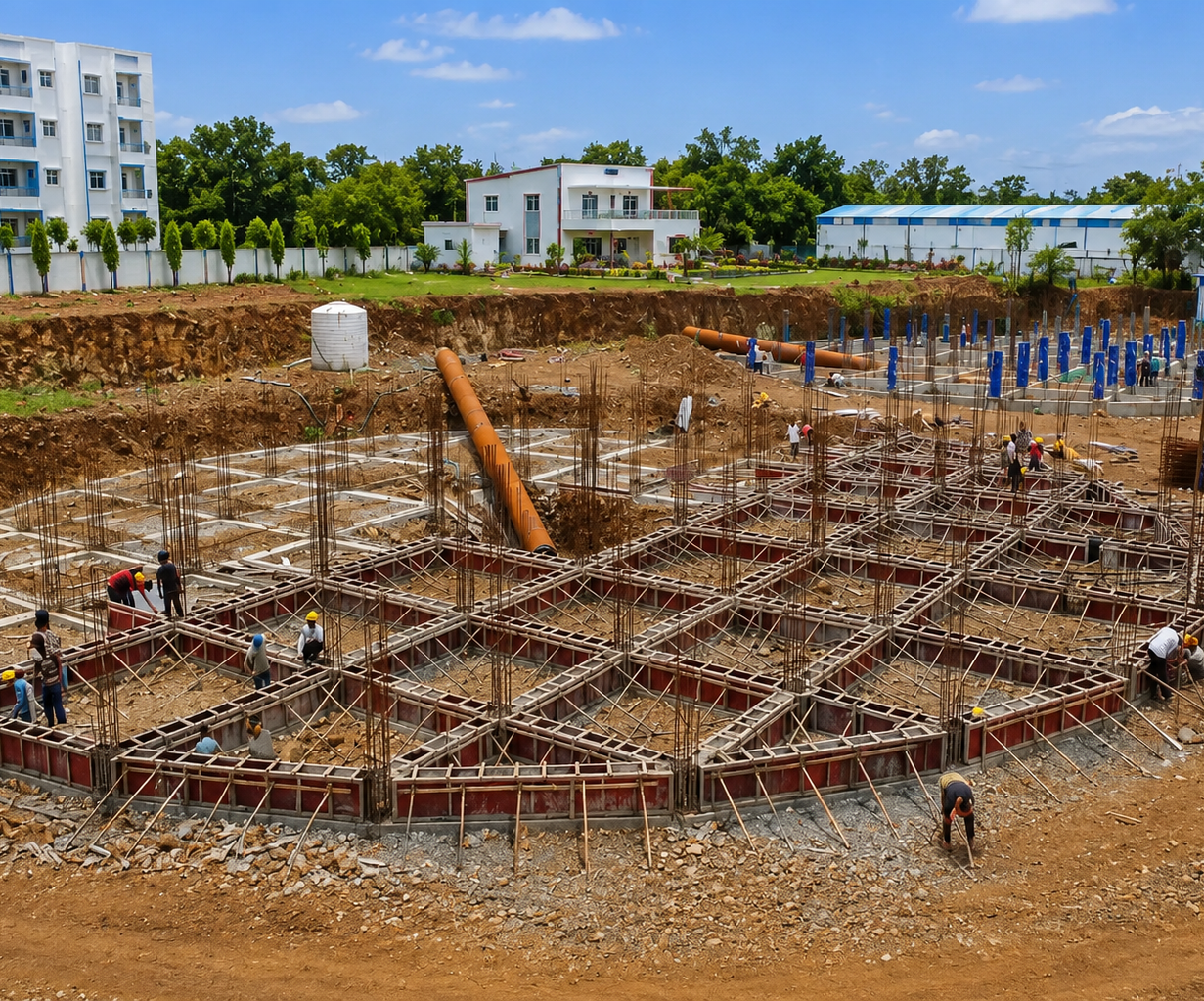

Clarifier System Installation Views
Replace these placeholders with your actual clarifier system project photos for the strongest visual impact.
Applications & Selection
Why Choose Our Industrial Clarifier Systems?
Our Industrial Clarifier Systems are engineered to deliver efficient solid-liquid separation, improved water quality, and reliable sludge management for a wide range of water and wastewater treatment applications.
Applications
Our clarifier systems are widely used in:
- Sewage Treatment Plants (STP)
- Effluent Treatment Plants (ETP)
- Water Treatment Plants (WTP)
- Industrial Process Water Treatment
- Water Recycling & Reuse Systems
- Municipal Water & Wastewater Projects
Our Engineering Approach
Every Aquen clarifier system is designed based on detailed process evaluation to ensure maximum treatment efficiency and long-term performance.
- Treatment capacity and flow rate analysis
- Water quality and suspended solids assessment
- Sludge collection and removal optimization
- Site layout and space optimization
- Compliance with industry standards and project requirements
